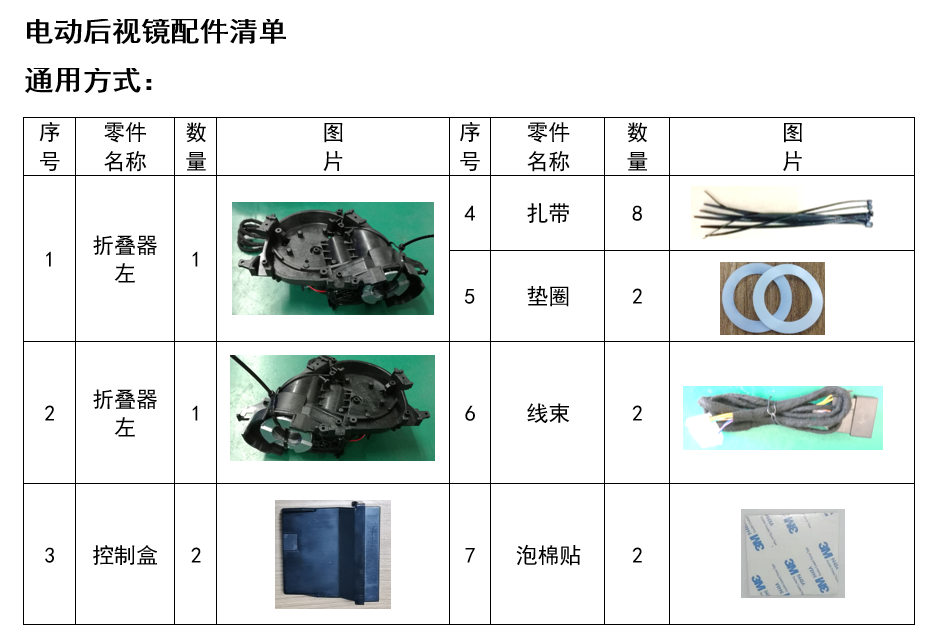

安裝說明書免責聲明：
1、本安裝說明書的圖片僅供安裝方法參考。
2、非專業人員或未經培訓人員安裝的，且未按本安裝說明書安裝的，出現異常或事故，本公司不負任何責任。
提示：本產品左右兩邊對稱安裝，以下只描述一邊的安裝方法，另一邊同樣安裝。
安裝步驟一：拆門板
1.1、拆下喇叭蓋
1.2、拆下門板（3顆螺釘+周圍卡扣等）
安裝步驟二：拆后視鏡及組裝后視鏡
2.1、取下3個螺釘孔橡膠蓋
2.2、取下孔內3顆螺釘，同時拔下2個線扣，拆下后視鏡
2.3、用塑料扳手撬開鏡片(小心輕撬）
2.4、取下1螺釘與三個卡扣拆下鏡片驅動器
2.5、拔出3Pin插頭并把Pin退出（注意拍照以記住線序）
