評估板LM25066EVK

的LM25066EVK評估板提供設計工程師用一個全功能的，智能監控和熱插拔保護板設計為正電壓的系統。

本應用筆記描述了評估板的各種功能，如何對其進行測試和評估以及如何使用隨附的GUI。GUI用于收集遙測，配置警告和故障閾值，并幫助設計人員為特定應用選擇外部組件。使用LM25066的遙測和監視功能需要通過PMBus?接口進行外部控制。但是，LM25066能夠充當熱插拔和保護電路，而無需任何PMBus?干預。請查看LM25066網頁以獲取最新的軟件和數據表信息。

評估板LM25066EVK的主要特性：

?輸入電壓范圍：2.9V至16V（受輸入鉗位D1

限制）?可編程電流限制：設置為50A（±8％）

?Q1功率限制：80W（典型值）

?UVLO閾值：2.9V和3.1V

?PGD閾值：10.8V和10.25V

?插入延遲：147 ms（典型值）

?故障超時時間：8.9 ms

?重新啟動時間：1.1秒

?PCB尺寸：3.5英寸x 4.2 ”

?解決方案尺寸：0.7英寸x 0.7英寸

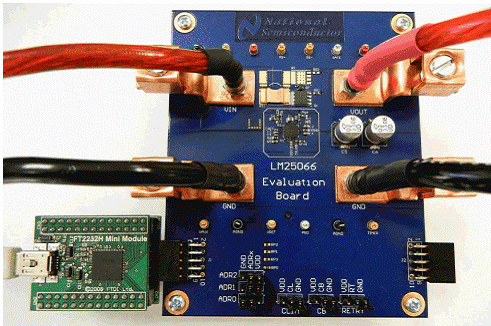

圖3.評估板LM25066EVK外形圖

圖4.簡化評估板LM25066EVK電路圖

圖5。LM25066EVK評估板電路圖
