Omron G70D-VS0C16 跨阻運算放大器電路配置可以將輸入電流源轉換為輸出電壓。電流到電壓增益基于反饋電阻。該電路能夠在輸入電流變化時在輸入源上保持恒定的電壓偏置，這可以使許多傳感器受益。
設計要求：
設設計計說說明明
1. 使用具有低偏置電流的 JFET 或 CMOS 輸入運算放大器降低直流誤差。
2. 可以向同相輸入添加偏置電壓，從而設置 0A 輸入電流的輸出電壓。
3. 在線性輸出電壓擺幅（請參閱 Aol 規格）內運行，從而程度地降低非線性誤差。
設計步驟：
1. 選擇增益電阻器。
R 1 = V oMax - V oMin I iMax = 5 V - 0 V 50 μA = 100 kΩ
2. 選擇滿足電路帶寬要求的反饋電容器。
C 1 ≤ 1 2 × π × R 1 × f p
C 1 ≤ 1 2 × π × 100 kΩ × 10 kHz ≤ 159 pF ≈ 150 pF （標準值）
3. 計算使電路保持穩定所必需的運算放大器增益帶寬 （GBW）。
GBW 》 C i + C 1 2 × π × R 1 × C 1 2 》 6 pF + 150 pF 2 × π × 100 kΩ × （ 150 pF ） 2 》 11 。 03 kHz
其中 C i = C s + C d + C cm = 0 pF + 3 pF + 3 pF = 6 pF ，各項的含義如下
? Cs：輸入源電容
? Cd：放大器的差分輸入電容
? Ccm：反相輸入的共模輸入電容
設計仿真

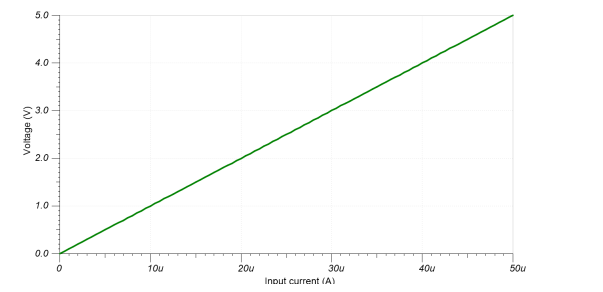

直流仿真結果

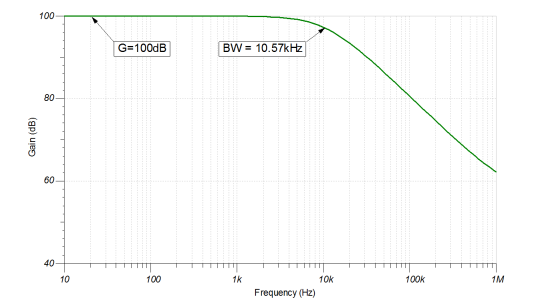

交流仿真結果
