1336S-BRF100-AN-FR4 原因分析
關于上述問題的原因，痞子衡先直接給，這是OTFAD外設本身的時鐘小限制，當OTFAD被使能時，如果被加密的app代碼是XIP執行，app里做系統時鐘配置時要始終保證Core時鐘高于FlexSPI外設時鐘。如果Core時鐘低于FlexSPI時鐘，此時Core去訪問加密Flash區域，OTFAD無法正常解密，會導致指令錯亂，發生系統故障。

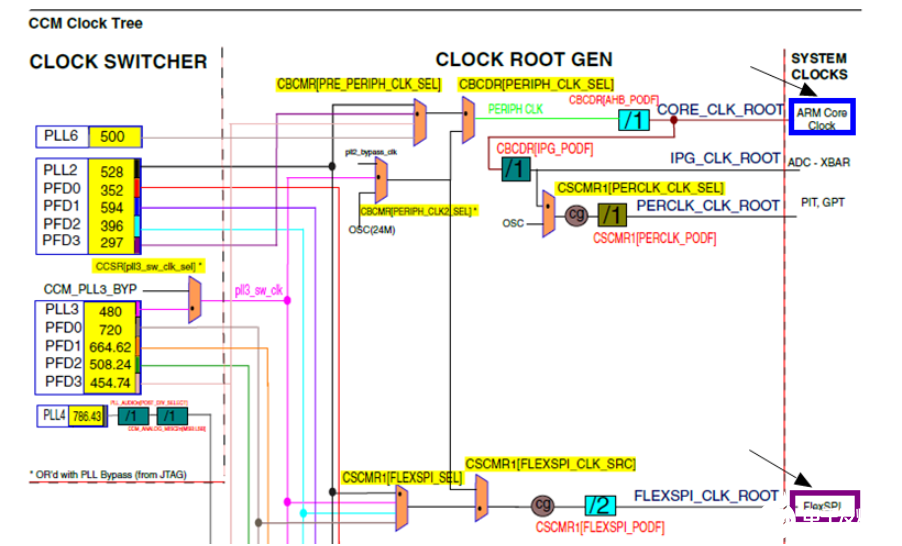

我們配合上面的i.MXRT1010系統時鐘樹來認真分析下OTFAD這個時鐘限制問題。芯片上電總是從BootROM執行，BootROM會先將Core配置到396MHz，將FlexSPI時鐘根據用戶放置在Flash偏移0x400處的FDCB里的設定配到30MHz - 200MHz不等，再讀取Flash偏移0地址處OTFAD DEK KeyBlob數據使能OTFAD，然后讀取IVT等頭信息去跳轉到App。很顯然只加密IVT部分根本不受OTFAD限制的影響，這部分解析是在BootROM里完成的，BootROM里時鐘配置符合OTFAD時鐘限制要求。
// BootROM里對Core時鐘配置
CCM_ANALOG->PFD_528[PFD3_FRAC] = 24, PLL2 PFD3輸出 (528MHz * 18) / 24 = 396MHz
CCM->CBCMR[PRE_PERIPH_CLK_SEL] = 2, 時鐘來自PLL2 PFD3
CCM->CBCDR[PERIPH_CLK_SEL] = 0， 內核時鐘來自CCM->CBCMR[PRE_PERIPH_CLK_SEL]
CCM->CBCDR[AHB_PODF] = 0， 內核時鐘不分頻
// BootROM里對FlexSPI時鐘配置
CCM_ANALOG->PFD_480[PFD0_FRAC] = x, PLL3 PFD0輸出 (480MHz * 18) / x
CCM->CSCMR1[FLEXSPI_CLK_SEL] = 3, 時鐘來自PLL3 PFD0
CCM->CSCMR1[FLEXSPI_CLK_SRC] = 0， FlexSPI時鐘來自CCM->CSCMR1[FLEXSPI_CLK_SEL]
CCM->CSCMR1[FLEXSPI_PODF] = y， FlexSPI時鐘做(y+1)分頻

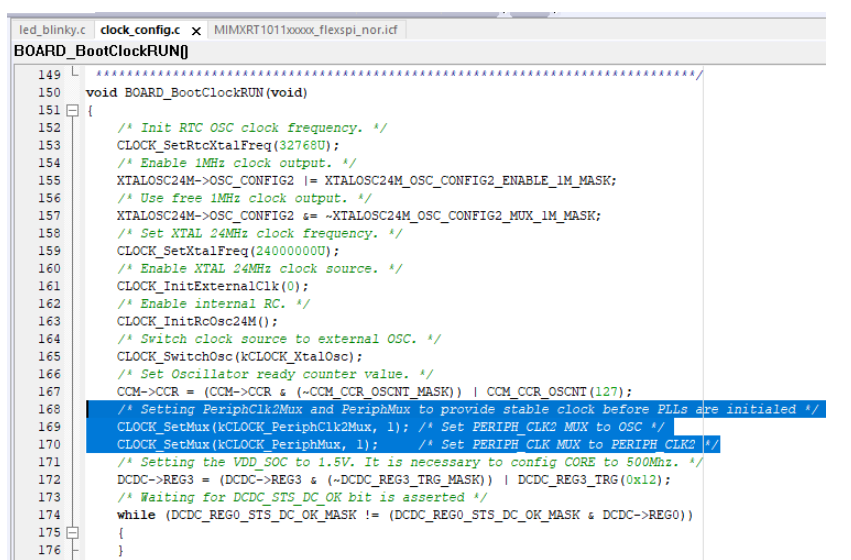

當BootROM跳轉到了App之后，我們?cè)賮?lái)看看App里對時鐘是怎么配置的，就是BOARD_BootClockRUN()函數，可以看到這個函數里將內核頻率從BootROM設置的396MHz切換到外部OSC 24MHz。無論此時用戶FDCB里對FlexSPI時鐘是多少配置，至少也會大于30MHz，那么此時24MHz內核頻率一定會低于FlexSPI時鐘頻率，此時只要發生內核對Flash加密區域的訪問（時鐘配置代碼就在Flash里執行），就觸發了OTFAD時鐘限制問題，App就會跑飛。
三、解決方案
知道了原因，解決方案就簡單了，在App時鐘配置里，不要按照尋常套路去先將內核時鐘源切換到外部OSC再切到PLL，而是直接切到PLL上。比如i.MXRT1010內部有個PLL6（也叫Audio PLL），固定500MHz，正好是App要的最終內核頻率，我們?cè)贐OARD_BootClockRUN()里將Audio(Enet) PLL初始化設置代碼提到前面，刪掉原來的切換OSC設置代碼即可。
voidBOARD_BootClockRUN(void)
{
//此處略去...
/*SetOscillatorreadycountervalue.*/
CCM->CCR=(CCM->CCR&(~CCM_CCR_OSCNT_MASK))|CCM_CCR_OSCNT(127);
-/*SettingPeriphClk2MuxandPeriphMuxtoprovidestableclockbeforePLLsareinitialed*/
-CLOCK_SetMux(kCLOCK_PeriphClk2Mux,1);/*SetPERIPH_CLK2MUXtoOSC*/
-CLOCK_SetMux(kCLOCK_PeriphMux,1);/*SetPERIPH_CLKMUXtoPERIPH_CLK2*/
//此處略去...
/*SetIPG_PODF.*/
CLOCK_SetDiv(kCLOCK_IpgDiv,3);
+/*InitEnetPLL.*/
+CLOCK_InitEnetPll(&enetPllConfig_BOARD_BootClockRUN);
+/*Setpreperiphclocksource.*/
+CLOCK_SetMux(kCLOCK_PrePeriphMux,3);
//此處略去...
/*EnableAudioPLLoutput.*/
CCM_ANALOG->PLL_AUDIO|=CCM_ANALOG_PLL_AUDIO_ENABLE_MASK;
-/*InitEnetPLL.*/
-CLOCK_InitEnetPll(&enetPllConfig_BOARD_BootClockRUN);
-/*Setpreperiphclocksource.*/
-CLOCK_SetMux(kCLOCK_PrePeriphMux,3);
//此處略去...
/*SetSystemCoreClockvariable.*/
SystemCoreClock=BOARD_BOOTCLOCKRUN_CORE_CLOCK;
}
最后再提一下，這個OTFAD時鐘限制問題在i.MXRT1170上同樣存在，解決思路與上面類似，痞子衡就不再贅述了。
至此，系統時鐘配置不當會導致i.MXRT1xxx系列下OTFAD加密啟動失敗問題便介紹完畢了
