采集板與主機的通訊的實現
本系統是一個主從式的結構，主機為PC工控機，從機為T(mén)MS320VC5402DSP，它們通過PCISA總線建立連接。PC機可以通過C5402的HPI口讀寫其片內RAM存儲單元，而C5402不能讀寫主機的存儲單元，雙方采用中斷方式互相聯絡。傳統的單片機與外部主機進行接口時，需要外擴必要的硬件電路。當單片機需要與主機共享RAM時，需在片外擴展RAM及觸發、鎖存等芯片，然后主機通過DMA方式訪問該擴展RAM，這樣一來主機可以隨機或整塊地訪問、共享RAM。另外，在片外至少需要擴展一片鎖存器使得單片機可以中斷主機。TI的TMS320C5402HPI接口將以上功能集成到DSP內部，使其與主機的連接變得非常簡單。而且由于HPI是集成到片內的，主機可以達到很高的訪問速度，滿足了數字信號處理中高速度的要求。
在實際應用中，PC機要向C5402發送一些控制命令和數據，主要包括：1）采樣命令，控制C5402采樣的起停；2）參數修改命令，通知C5402修改參數及整定值；3）數據上傳命令，通知C5402上傳采樣數據等。同時，C5402也要告知PC機自己所處的運行狀態和所檢測到的信息，主要包括：1）正常運行狀態；2）故障啟動狀態。
為了實現上述的雙向信息交流，可以在C5402的內部RAM中定義兩個存儲單元，一個是命令單元，用于存放PC機發給C5402的命令字；另一個是狀態單元，用于存放標志C5402系統所處狀態的狀態字。另外，再?gòu)腃5402內部RAM中劃分出兩個存儲區，一個是Host區，用于存放PC機傳給C5402的數據；另一個是Slave區，用于存放C5402要傳給PC機的數據。當PC機要向C5402發送命令和數據時，先將命令字和數據分別寫入命令單元和Host區，然后向C5402發出中斷請求信號，C5402響應中斷后將命令字和數據讀出，并根據命令字完成相應的操作。PC機可以隨時讀取狀態單元，以獲取C5402系統的狀態信息。正常運行時，C5402狀態字的值為初始化值（0000H）。故障發生后，當C5402需要向PC機上傳必要的數據信息時，先將狀態字和數據分別寫入狀態單元和Slave區，然后向PC機發出中斷請求，PC響應中斷后將狀態字和數據讀出，并根據狀態字完成相應的操作。
ABB FPBA-01
采集板的實驗驗證
為了驗證采樣及處理單元工作的正確性，并可用于故障選線裝置中，完成了以下實驗。試驗用信號由信號發生器產生：電平為-1V～+1V，頻率分別為50Hz和200Hz的正弦信號。

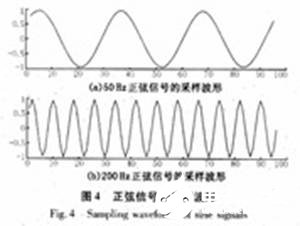

試驗中，用DSP的XF引腳產生A/D采樣時鐘信號，其采樣頻率由DSP的內部定時器設定，為1.6kHz。對于200Hz的輸入信號，在一個周期采樣8點；對于50Hz的輸入信號，在一個周期采樣32點。采樣數據先保存在DSP的內部RAM中，然后由工控機通過ISA總線讀進來，并以文件的形式保存到硬盤上，最后用MATLAB將波形顯示出來，如圖4（a）和圖4（b）。
從這兩個圖可以看出，采樣恢復波形與原始波形相吻合，而且很光滑。通過以上試驗可以肯定，本采樣及處理單元的設計是成功的。
3裝置實現的主要功能及特點
1）正常情況下裝置實時監視零序電壓（U0）的變化量，對采樣數據不做任何分析。發生單相接地故障時，監視程序發命令，通過硬件觸發裝置，裝置隨即保存當前數據窗中的數據，將采集到的數據下載到計算機的硬盤上并啟動選線算法，給出選線結果。
2）故障選相。如果電壓相相電壓小于Ｋ倍額定相電壓，則電壓相為接地相；如果三相電壓都大于Ｋ倍額定相電壓，則電壓相的下一相為接地相；在實際的故障相判定中Ｋ值應小于0.823。中性點經消弧線圈接地系統判別故障相的方法與中性點不接地系統相似，將上述方法中的“下一相”改為“上一相”即可。
3）判定故障線，發出選線信號或跳閘。如果采用暫態法無法判定故障，則啟動穩態法進行計算：對采樣值進行FFT分解，按基波或5次諧波排隊（對于NUS和NRS采用基波，對于NES采用諧波），取幅值的前三個進行比相，若某個與另外兩個方向相反，則判斷該線路接地，否則，為母線接地。
4）每塊數據采集板能對12條線路同時進行監視。
4結論
小電流接地系統發生單相接地時，故障電流暫態分量的頻率、幅值、相位等參數與故障特性有清晰的相關性，接地電容電流的暫態分量往往比其穩態值大幾倍到幾十倍，本裝置采用能對突變的、微弱的非平穩故障信號進行精確處理的小波分析理論的選線算法進行選線很好地解決了傳統選線方法利用穩態信息進行選線準確率低的問題，此外由于故障選線裝置要同時監視多條線路并采集多路電量信息，數據分析處理任務繁重。數字信號處理芯片（DSP）具有快速運算能力和強大的數據處理能力，可以為故障選線的實現提供強大的硬件支持。為此，利用DSP構成實時多通道同步數據采集系統以保證多路信號測量的同步性、實時性和精度。實現的裝置能夠滿足實際運行的需要。
