ZVB20 深圳ZVB20網絡分析儀

R＆S ZVB20 矢量網絡分析儀

頻率范圍:10 MHz至20 GHz
測試端口:3.5毫米（米）無法進行直接通道訪問（ZVB20-B16））
測試端口:3.5 mm（m）
采用創新的硬件和軟件概念建成，R＆S的矢量網絡分析儀® ZVB系列設置了新的標準：一個發電機可以同時養活兩個測試端口。這使得并行測量成為可能，盡管手頭的測量任務很復雜，但仍顯著提高了性能。

R＆S ZVB20 矢量網絡分析儀

產品優勢

• 測量時間短

• 動態范圍廣

• 高輸出功率

• 功率掃描范圍廣

R＆S ZVB20 矢量網絡分析儀

產品特征

• 高性能，可實現快速可靠的測量

• 人機工程學用戶界面

• 測量功能

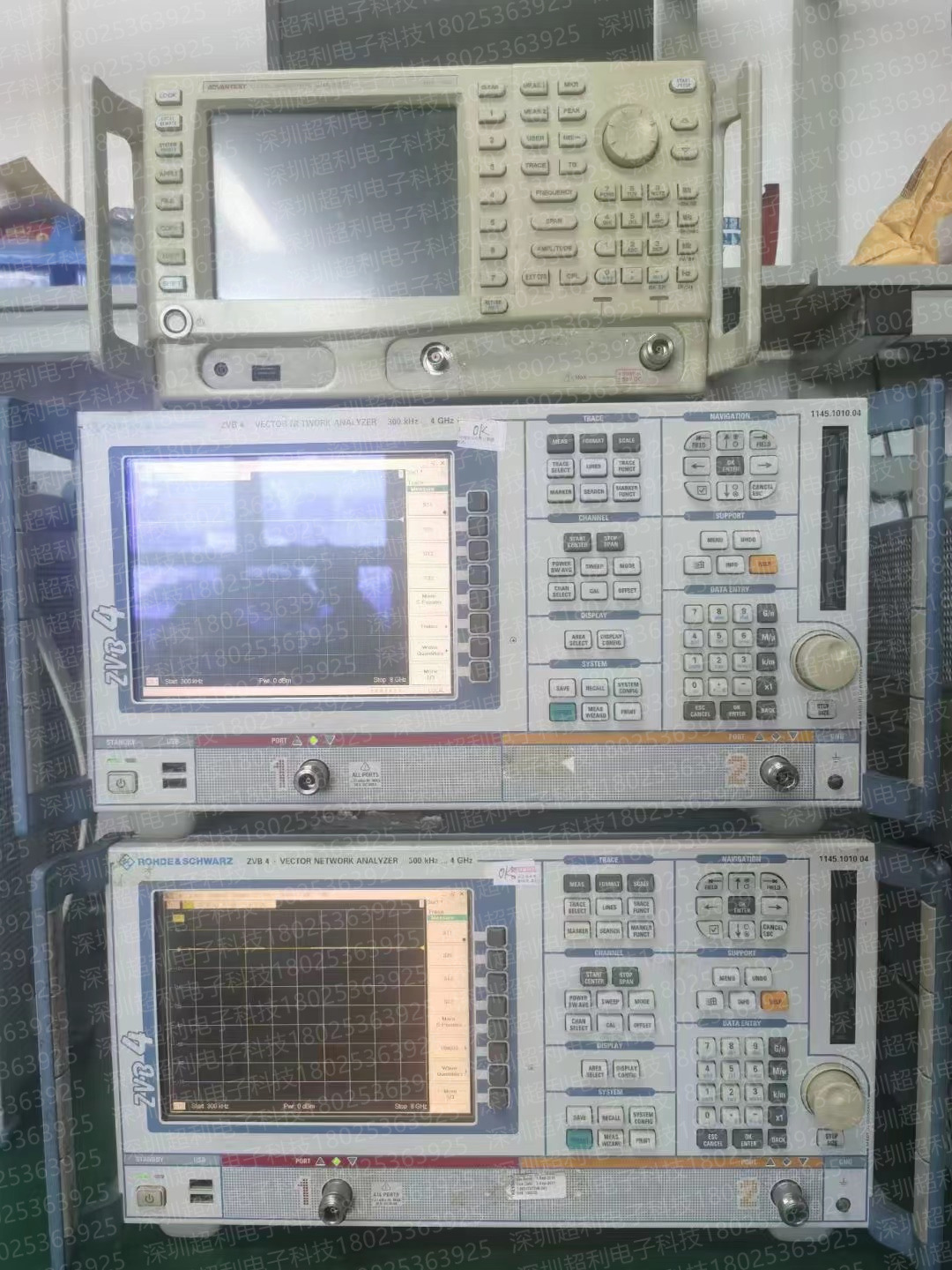

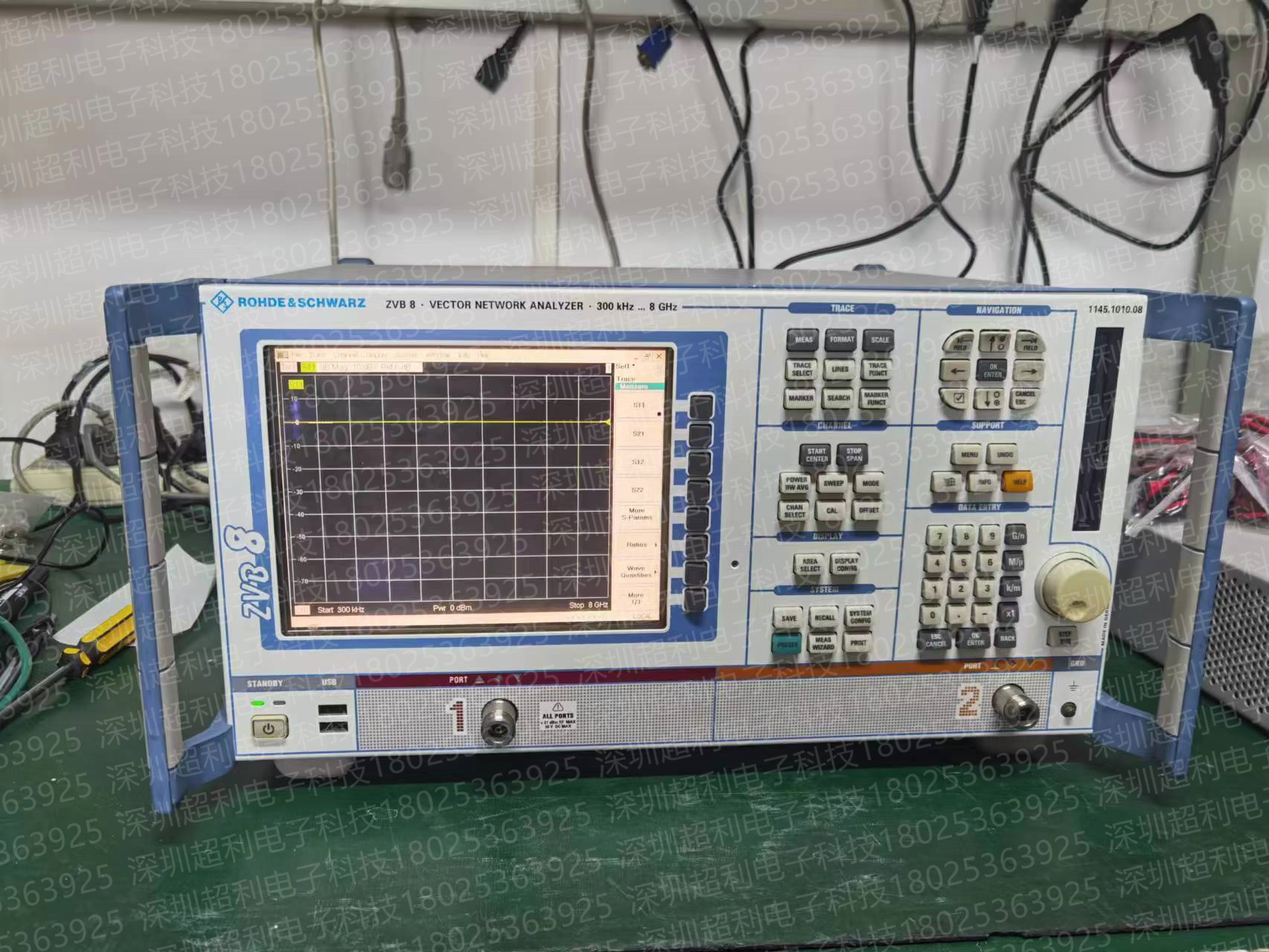

The R&S®ZVB series of vector network analyzers covers the frequency ranges from 300 kHz to 4/8 GHz and from 10 MHz to 14/20 GHz. It has been designed for universal measurements on passive and active components. The R&S®ZVB series greatly simplifies vector network analysis especially for multiport measurements and measurements on balanced devices. Featuring comprehensive measurement functions, excellent specifications, high measurement and data transfer speeds and remote-control capability, the analyzers of the R&S®ZVB series are an ideal choice for both development and production applications. The compact versions of the 14 GHz and 20 GHz two-port models leave ample room for test setups in the lab, featuring a height of only 24 cm and a depth of 42 cm.

New multiport concept
    ◇ Instruments with two or four test ports – for multiport and balanced measurements
    ◇ Two internal sources (four-port models) – to provide RF and LO signals for mixer measurements by means of a single unit
    ◇ Capability to perform balanced measurements – to characterize balanced DUTs by their mixed mode S-parameters
    ◇ Optional automatic calibration units – to speed up calibration and avoid operator errors
Outstanding specifications


    ◇ 60001 points per trace
    ◇ Dynamic range better than 123 dB (typ. 130 dB)
    ◇ Power sweep range >50 dB
High speed
    ◇ Measurement time < 4.5 ms for 201 test points (frequency sweep)
    ◇ Switching time between channels < 1 ms
    ◇ Switching time between instrument setups < 10 ms
    ◇ Data transfer time < 0.7 ms (201 test points via RSIB)
    ◇ Simultaneous measurement of more than one DUT
Modern user interface
    ◇ Intuitive Windows-based operation via mouse
    ◇ Operation by means of hardkeys and softkeys
    ◇ Large number of channels, traces and setups that can be loaded simultaneously
