在電力系統中，電網承擔著輸送分配電能、改變電壓的任務，它就像人的骨架一樣關鍵。其中變電站、輸電線路等電網組成部分，則相當于骨骼關節，經常會遭受一些磨損破壞。
對變電站、輸電線路等電網組成部分進行定期巡檢，是每一家供電單位的日常必修課。電網的穩定運行與否，不僅影響著我們每一個人的生活，更關乎國家能源安全。
以往的電力巡檢，需要巡檢工人靠雙腳丈量線路、攀爬桿塔，在高空、烈日、大風等考驗下長時間作業。不僅安全隱患巨大，而且費時費力、效率低下。
2012年左右，無人機開始進入電力巡檢領域，搭載了攝影攝像單元的多軸無人機，成為了巡檢人員的“另一雙眼”。但受到拍攝精度、信息連續性等技術限制，當時的無人機巡檢仍然無法根除痛點，甚至僅能用于為人工巡檢查漏補缺。
近年來，隨著相關技術的發展，出現了以北科天繪為代表的企業，借由LiDAR設備，使得無人機巡檢的精度和效率得到了顯著提升。
國家電網湖南省電力公司，為了驗證激光雷達巡線的效率、精度與便捷度，采用北科天繪的服務與解決方案，通過激光雷達電力巡線試點項目，成功為電力巡檢工作找到了一條更高效更精準的實現路徑。
試點項目的測繪區域，包括位于韶山市的一座100KV變電站及站點延伸出的輸電線路。變電站所在地點地勢低洼、線路密集且有圍墻阻擋，較為的展現了電力巡檢工作的環境復雜性。針對此次作業中的諸多挑戰，北科天繪選擇了專門針對小范圍測區測量的蜂鳥（Genius）微型無人機LiDAR。

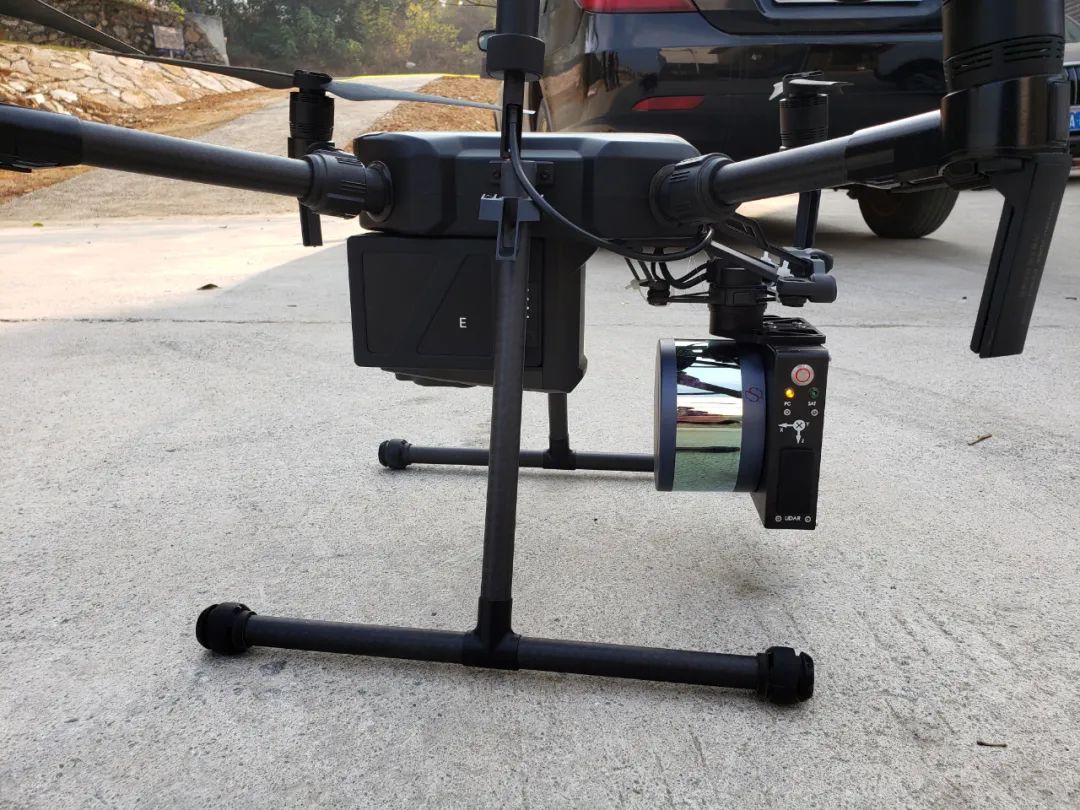

本次項目飛行中蜂鳥搭載了R-Fans-16激光掃描儀
集成R-Fans多線激光掃描儀、慣導測量系統（GNSS/IMU）、計算機控制單元的蜂鳥系統，不僅操作簡單、無需專用場地便可起降，其輕至1.2kg的重量，還讓無人機得以實現更長時間的連續作業。
蜂鳥系統的點密度大于200點/㎡，系統測距精度2cm，絕對精度優于10cm，足以應對變電站電力巡檢的要求。此外、憑借其250m的測距、360°的掃描視場以及320kHz/640kHz的高掃描頻率，實時獲取地形表面的三維空間信息和影像特征，大大提高了航空測繪的掃描效率。
由于測繪范圍中變電站區域地勢偏低，延伸輸電線路則偏高，蜂鳥系統被設置在距變電站正上方45m的高度，以5m/s的航速飛行，在無需隨地勢而改變飛行高度的前提下，保證了測繪數據的清晰完整。
